Pure Sine Wave Solar Inverters
With built-in solar charge controllers, auto generator start, remote monitoring, and more

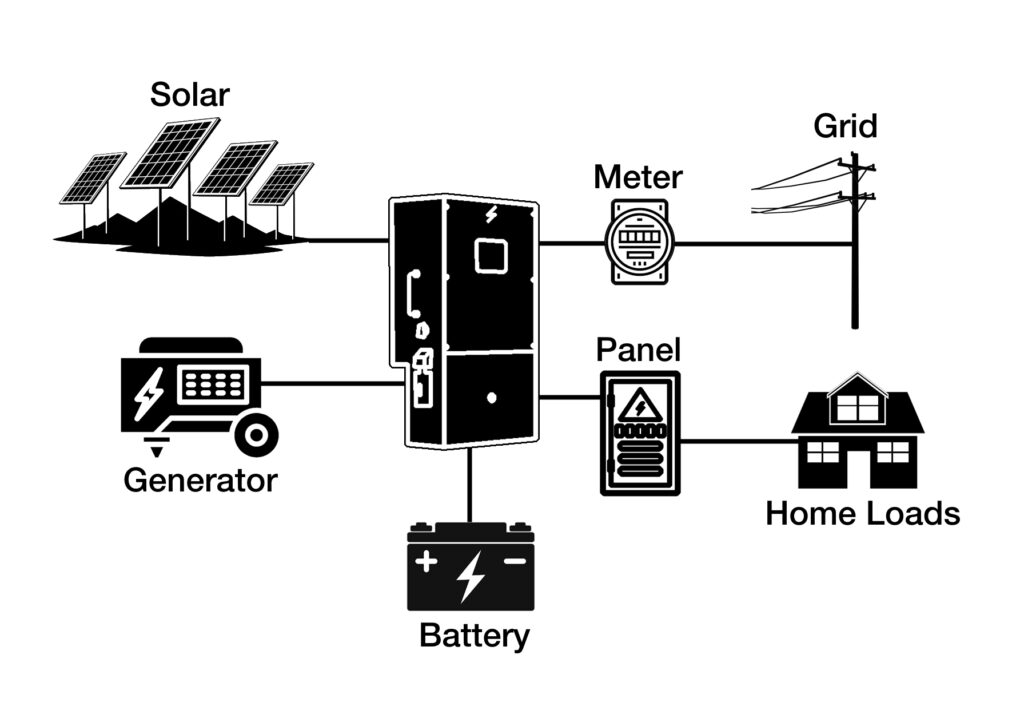

Control your Solar, Battery, And Grid Power
Our Pure Sine Wave Solar Inverters give you everything you need to manage your solar, battery, generator, and grid power, all in one place.
- Battery Preset Options allows the inverter to be quickly programmed to any battery type.
- AC Charger can be programmed to work with any power source, and charge when you need it.
- MPPT Charge Controller built in, allows direct connection with solar. No separate components required.
- Dedicated Generator Hookup means no transfer switch required
Rapid Shutdown Generation continues generating power from your solar panels during a power outage while complying with rapid shutdown.
Remote Monitor provides real-time updates and a clear overview of how power generation and consumption from the grid, solar, and battery are being used throughout your system.
Instant Transfer Times mean your electronics stay running with no interruptions during brown outs, black outs, and surges.
Monitor Your System From Anywhere
Keep peace of mind with WiFi monitoring, accessible from Android, IOS, or browser. Always know if your home has power, even when you are away. Keep track of your usage, and solar production, with easy-to-read charts.
- Monitor Sources, see what source your home is drawing power from
- Push Notifications, lets you know when grid goes down
- Battery Status, know when your batteries are charged or low
- Power Usage, keep track of how much power your home uses
- Informative Charts, giving you access to usage, generation, and other energy information
- Faults and Alerts, easy troubleshooting for any faults in your system
Feature Packed
We pack our inverter full of features to give you everything you need all in one unit
One Unit for All of Your Needs
- MPPT Solar Charge Controllers built in, allowing direct hookup.
- Dedicated Generator Hookup with Automatic Generator Start
- Multiple Battery Hookups for Installing Battery Arrays
- Instant Transfer Times keep your loads running with uninterrupted power
- Net Metering capable, sell your unused power back to the grid
- Built in Breakers, no external breakers needed.
- Rapid Shut Down (RSD) Compliant
- Remote Monitoring keeps you informed of every aspect of the power of your home
Powerful Performance
AC Power
- Up to 12,000w Continuous Output
- 15,000w Capable With Solar
- 200a Grid Passthrough
- Net metering compliant
- Stackable for more power
Strong Solar Capability
- 4 MPPT Controllers Built in for a Max Voltage of 500v
- Up to 20a per MPPT
- 99.9% MPPT Efficiency
Battery Flexibility
- Capable of working with Lead Acid, AGM, Lithium, Carbon, and more
- Self-adaptation to BMS
- Up to 190a charging/discharging current.
- Dual 48v Battery Hookups
LCD Touchscreen Display
Our LCD touchscreen Display makes navigating all the data on your system easy. Easy programming is protected behind a password to prevent unwanted or accidental changes. Data and settings can also be accessed from a browser for even easier viewing and editing.
There's More...
Lightweight mounting frame allows simpler installation. Simply mount the frame to the wall, and then lift the inverter using the built in handles onto the tabs of the frame. At this point the frame will hold the inverter in place while you bolt it in. This removes the need to have multiple people lift an inverter, whilst another bolts it to the wall.
Our inverter can be paralleled up to 4, allowing for up to 64kw of power. This also allows for 3 phase applications.
All of our inverters are rapid shutdown ready. At the push of a button all outputs are shut down. In addition with a rapid shutdown transmitter, you can continuously charge your system even when the power goes out.
2 built in battery connections allow for multiple battery arrays to be installed. RS485 or BMS_CAN ports allow communication with batteries, allowing use of any battery type.
Product Documents
Available Collateral on our Pure Sine Wave Hybrid Inverters
Which Inverter Is Right For Me?
Need help deciding which inverter is for you? Let us help, give us a call at 603.709.2176
Specs
Specifications-
AC Max Output To Grid
-
Max Grid Passthrough
-
AC Charger
-
Max PV
Solar Inverter FAQs

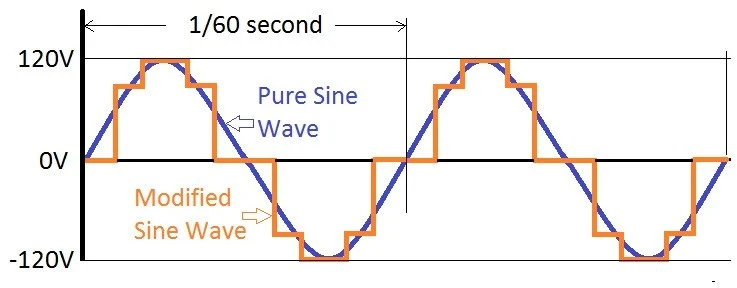

Sine waves refer to alternating current (AC) power. A pure sine wave is a perfectly smooth wave, often referred to as “clean power”, which is necessary for sensitive electronics. It’s comparable to putting clean gas into your car.
We offer a 10 year limited warranty on our inverters.
If you are looking to save on shipping and support local, try our “Find A Dealer” page.
No, a battery is not required to use our inverter. You can run the inverter with just solar, just battery, or both depending on what you are looking to accomplish with your system!
